First, the characteristics of the product:

1 highly modular design: the motor can be easily equipped with various types of orusing other power input. The same type of motor can be matched with variouspower. The combination of easy connection between models.

2 transmission ratio: Division of fine, a wide range of. Combined type can form a large transmission ratio, namely the output low speed.

3 installation: installation location is not restricted.

4 high strength, small size: box made of high strength cast iron. Gear and gear shaft grinding process using gas carburizing and quenching, and thus the high carrying capacity per unit volume.

5 long life: the correct selection (including selection of appropriate use factor) and normal maintenance conditions, reducer (except wearing parts) of the main parts of life is generally not less than 20000 hours. Wearing parts including lubricants, oil seals and bearings.

Low noise: 6 main parts are machined, and through the assembly and testing, and thus lower noise reducer.

7 high efficiency: single type of efficiency is not lower than 95%.

8 can bear larger radial load.

9 axially load bearing the radial force of less than 15%.

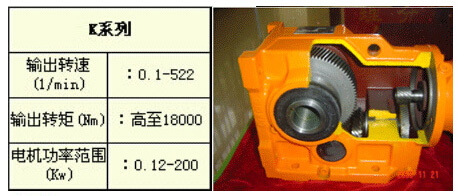

K series of three helical - Umbrella - helical gear reducer motor with high torqueand high efficiency and service life of gear pair. With mounting feet, flanges andshaft type.

Two, product segmentation map:
